PEP ### - Wheel Variants

Resource Link
PEP Link To Be Published
DPO Discussion Implementation variants: rehashing and refocusing
Github Repository https://github.com/wheelnext/pep_xxx_wheel_variants

Abstract

This PEP proposes an evolution of Python Wheels standard to support hardware-specific or platform-dependent package variants. Current mechanisms for distinguishing Python Wheels (i.e Python ABI version, OS, CPU architecture, and Build ID) are insufficient for modern hardware diversity, particularly for environments requiring specialized dependencies such as high performance computing, hardware accelerated software (GPU, FPGA, ASIC, etc.), etc.

This proposal introduces Wheel Variants, a mechanism for publishing platform-dependent wheels and selecting the most suitable package variant for a given platform.

To enable fine-grained package selection without fragmenting the Python ecosystem, this PEP proposes:

  • A Wheel Variant system that enables multiple wheels for the same Python package version, distinguished by hardware-specific attributes.

  • A Provider Plugin system that dynamically detects platform attributes and recommends the most suitable wheel.

  • A hash-based identification mechanism for wheel variants, ensuring compatibility while maintaining clarity in package naming.

This approach allows seamless package resolution without requiring intrusive changes to installers, ensures backward compatibility, and minimizes the burden on package maintainers.

Motivation

Existing approaches to handling platform-specific Python packages are suboptimal. Some methods include maintaining separate package indexes for different hardware configurations, bundling all potential dependencies into a single "mega-wheel," or creating separate package names (mypackage-gpu, mypackage-cpu). Each of these approaches has significant drawbacks, such as excessive binary size, dependency confusion, and inefficient dependency resolution, etc.

The need for a systematic and scalable approach to selecting optimized wheels based on platform characteristics has become increasingly urgent as Python usage expands across diverse computing environments, from cloud computing to embedded systems and AI accelerators.

Rationale

User Stories

  • A user wants to install a version of NumPy that is specialized for their CPU architecture.

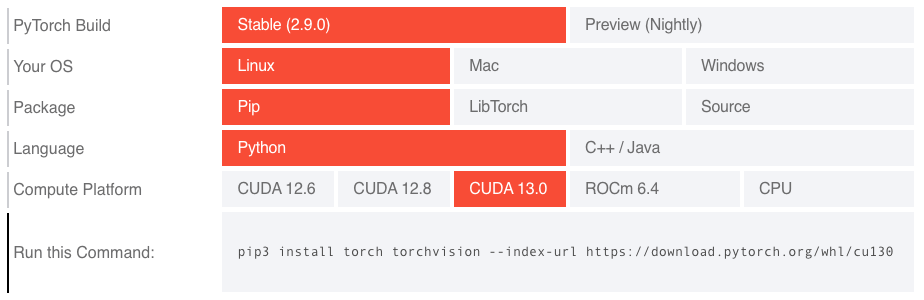

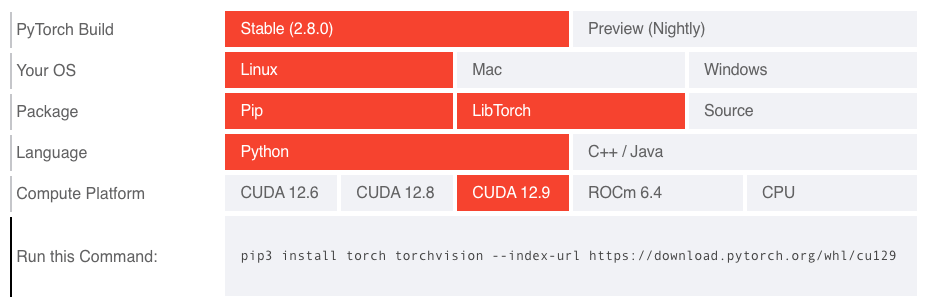

  • A user wants to install a version of PyTorch that is specialized for their GPU architecture.

  • A user wants to install a version of mpi4py that has certain features enabled (e.g. specific MPI implementations for their hardware).

  • A library maintainer wants to build their library for wasm32-wasi with and without pthreads support.

  • A library maintainer wants to build their library for an Emscripten platform for Pyodide with extensions for graphics compiled in.

  • A library maintainer wants to provide packages of their game library using different graphics backends.

  • SciPy wants to provide packages built against different BLAS libraries, like OpenBLAS and Accelerate on macOS. This is something they indirectly do today

  • Manylinux standard doesn’t cover all use-cases: github.com/pypa/manylinux/issues/1725

Wheel Variants

Opt-in vs. opt-out

A critical early design point was whether installing wheel variants when they were published for a package, was supposed to be opt-in or opt-out. An early proposal was to make them opt-in, possibly by requiring the user to manually install specific plugins. Then the installer would use all the plugins found in the environment to determine whether variants are supported. It was pointed out that this design would hamper the adoption of wheel variants and be a suboptimal solution to the original problem, given that the users would need to be explicitly aware whether any packages (either installed directly or as a dependency) provide wheel variants, and then find out which plugin packages they need to install in order to enable them. Furthermore, the necessity of manually keeping the plugins in acceptable version ranges could cause a significant maintenance burden.

Instead, an opt-out approach was taken, with plugins being automatically installed into an isolated environment. This approach ensures that variants work out of the box, and users can benefit from them with minimal maintenance burden. To satisfy the localized need for an opt-in solutions, providers can be marked optional — in which case they must be enabled explicitly but still benefit from automatic provider installation.

Wheel filename

In order to uniquely identify variants, a variant label was added to the filename. The label is added as the very last component to make it easy to distinguish different variants.

The model defaults to using a hash to provide unique and reproducible filenames out of the box. However, it permits explicitly choosing a different label to make variants easy to recognize by humans. The label length is strictly limited to prevent the wheel filenames to become much longer than they are now, and causing issues on systems with smaller filename or path length limits.

A core requirement of the design was to ensure that installers predating variant support will ignore wheel variant files. For this reason, the variant hash is separated using the same - character as other wheel filename components. Therefore, wheel filenames have two optional components now: the build number (at third position), and the variant label (at the last position). If both are present, the wheel filename is rejected because it has too many components (seven). If only the variant label is present, it is rejected because python tag is taken to be the build number, and the build number must start with a digit. However, this assumes that the python tag will never actually start with a digit. This behavior was confirmed by a survey of wheel filename verification methods used by different package managers and libraries (packaging, poetry, pip, uv).

Variant properties

Variant properties follow a key-value design, where namespace and feature name constitute the key. Namespaces are used to group features defined by a single provider, and avoid conflicts should multiple providers define a feature with the same name. The character sets for all components are restricted to make it easier to preserve consistency between different providers, in particular uppercase characters are rejected to avoid different spellings of the same name. The character set for values is more relaxed, to permit values resembling versions and version specifications.

Multiple values are permitted as a logical disjunction, while different features are treated conjunctively. This is meant to provide some flexibility in designating variant compatibility while avoiding having to implement a complete boolean logic. This flexibility is further extended via the concept of dynamic plugins, permitting the values to be dynamically interpreted, e.g. as version ranges.

Variant hash

Variant hash is used as a stable and unique identifier for every set of variant properties. It is truncated to 8 characters to ensure that filenames remain short. SHA256 algorithm was chosen, because it is already widely used in wheels, in the RECORD file and therefore the package managers do not have to implement an additional algorithm.

To ensure reproducible hash values, properties are sorted before hashing. They are then serialized into a canonical string form, and each one is terminated with a newline character to ensure their separation.

As a special case, a variant hash of 00000000 is used for the null variant, to make it easily distinguishable from other variants.

Null variant

The concept of a null variant was added to make it possible to distinguish a fallback wheel variant from a regular wheel published for backwards compatibility. For example, a package that features optional GPU support could publish the following wheels:

  1. One or more GPU wheel variants that is installed on systems with wheel variant support and a suitable GPU.

  2. A CPU-only null variant that is installed on systems with wheel variant support but without suitable GPU.

  3. A GPU+CPU regular wheel that is installed on systems without wheel variant support.

In particular, this makes it possible to publish a smaller null variant for systems that do not feature suitable GPUs, with a fallback regular wheel with support for CPU and all GPUs for systems where variants are not supported and therefore GPU support cannot be determined.

Publishing a null variant is entirely optional. If one is missing, then the non-variant wheel is used instead. The non-variant wheel is also used if variant support is explicitly disabled.

Plugin API

General design

The plugin API was largely inspired by PEP 517. However, it was extended to support classes that are instantiated, to facilitate single initialization and clean caching of plugin state between multiple method calls. For the convenience of plugin authors, both class-level and module-level (with global variables and functions) API implementations are supported.

For the primary use in building packages and installing wheel variants, the plugin API endpoint is either specified explicitly or inferred from requirements. Support for the latter was added as the need to explicitly guess the correct build-backend value was noted as a shortcoming of PEP 517. However, for the convenience of package developers, plugins are recommended to install entry points as well. Thanks to that, the developer can install the relevant provider plugins to their system, and variant-related tooling will be able to automatically discover it and obtain the correct API backend values.

The API means to be absolutely minimal and is specified using abstract protocols. Its centerpiece is a function that allows a frontend to query the configs supported on the current platform (get_supported_configs()). Additionally, a plugin declares the namespace it uses (namespace), whether it is a static or dynamic plugin (dynamic) and exposes a function to validate properties (validate_property()).

The namespace is declared globally and is avoided in return values to avoid redundancy and the need to handle potential mismatches. All methods are only passed properties in the plugin namespace to make plugin implementation easier, and avoid the need for explicit filtering, that if accidentally omitted could result in mistakenly processing properties from another namespace.

The validate_property() method is provided for build backends to ensure that wheel variants are not built with incorrect properties. It operates on one property at a time to simplify the return value, since calling it multiple times is not considered a bottleneck.

The types used in the API are defined using abstract protocols, in order not to force a specific implementation. For example, the relevant data types can be implemented using data classes, named tuples, argparse.Namespace or an entirely custom class.

Static and dynamic plugins

The split into static and dynamic plugins was introduced to handle diverse use cases for wheel variants. In particular, static plugins are better suited to handling feature-style properties, while dynamic plugins are better equipped to dependency-style properties.

An example of a feature-style property is CPU support. If a wheel variant is built for a version 3 of an example CPU (equivalent to -march=example-v3), it could use the following property to declare that it requires support for that:

example_cpu :: version :: 3

Conversely, when the plugin detects that version 4 of that particular CPU is available, it would return all versions compatible with it, in order of preference (the highest version being most preferred, as it would match the best optimization available):

example_cpu :: version :: [4, 3, 2, 1]

The key point here is that the set of all valid property values is fixed for a particular plugin version, and both the required values specified by the variant wheel, and the supported values returned by the plugin are subsets of that set, and can be determined independently of each other. In this scenario, the wheel declares what it requires, and the plugin returns what the particular CPU provides. Most importantly, the plugin can up front determine all other CPU versions that are compatible with it.

An example of a dependency-style property is compatibility with a runtime version. While simpler dependency requirements (such as Semantic Versions of style >=1.2, <2) could be reasonable well expressed using static plugins, a more general case such as >=4, <=7 cannot. Let's assume that a wheel variant declares it using two properties:

example_runtime :: min :: 4
example_runtime :: max :: 7

If a plugin has dependency version 6 installed, it needs to reject wheels requiring >=7 or higher (i.e. min :: 7), and accept values below that, that is:

example_runtime :: min :: [0, 1, 2, 3, 4, 5, 6]

Conversely, it needs to reject wheels requiring <=5 (i.e. max :: 5), and allow any value higher than that:

example_runtime :: max :: [6, 7, 8, ...]

Solutions of this kind face three problems:

  1. The max list is unbounded (as new versions can be released indefinitely). The plugin can use some approximation, such as going a limited number of versions forward from the newest known version at the time and updating the list in new plugin releases, but this is hardly a robust solution.

  2. The min / max semantics can be confusing for plugin authors. Rather than matching installed runtime version to the dependency specifiers, we are constructing all dependency specifiers that would match the installed runtime version.

  3. Handling versions consisting of multiple components requires introducing even more properties, and the complexity grows quickly.

The dynamic plugin approach could be used to solve that problem in a way that's both most robust and easier to comprehend. For example, the variant wheel would declare the runtime versions it is compatible with as a property:

example_runtime :: version :: >=1.2.3,<3

When runtime version 1.6.7 is installed, rather than trying to enumerate all possible dependency specifiers matching that version, the plugin is given all properties actually found in wheels, determines which specifiers match the installed version and return them in order. In this particular case, it would return precisely the same value. In more generic cases, it might return multiple values if multiple compatible wheel variants are available, ordered by the best match.

In this class of plugins, the key point is that the set of all valid property values cannot be determined up front, and is possibly infinite. The wheel variant declares the value that the system needs to be compatible with, and the plugin determines whether the system is actually compatible with it.

Technically, dynamic plugins can also satisfy all the use cases for static plugins. However, the support for the static approach was preserved to facilitate better caching, reduced attack surface, and the ability to pin variants easier for the use cases that do not need dynamic processing.

Both versions of the API use the same prototypes to avoid maintaining two divergent API documentations, and to make it easier to convert plugin from one type to another. The only difference is in the value of known_properties argument to get_supported_configs(), that explicitly takes None for static plugins to avoid accidentally depending on this data in static plugins.

Variant information

Format and locations

The variant information format is meant to cover the complete pipeline from building wheels to installing them. It includes both information needed to build wheel variants and to install them. The information is initially included in project's pyproject.toml file, then copied verbatim into variant.json in the built wheel. From there, it is copied to *-variants.json file on the index, where it enables installers to filter and sort the supported wheel variants without having to fetch all of them. This is similar in principle to PEP 658 that enables serving the distribution metadata via an additional URL.

For project-level configuration, the pyproject.toml format was selected as specified in PEP 518, and frequently used for project metadata and tool configuration. For wheel-level information, a JSON file is used instead, as a format intended exclusively for machine processing and supported by all Python versions. The same format is used e.g. in PEP 770 that is also included in the .dist-info directory. For the same reasons, JSON is also used for *-variants.json on the index.

A separate variant.json file is used in the .dist-info directory to minimize the risk of interoperability issues and to make the implementation as simple as possible. In particular, given different implementations of code responsible for reading and writing METADATA and WHEEL files in different package managers (some expecting dictionaries, others serialized data), a solution that uses a separate file made providing the data via a single reusable library easier.

All files use the same (deserialized) structure to make the respective implementation code reusable, and to make transitioning the data between files as easy as possible. The pyproject.toml file includes data that is not strictly relevant to building, to keep all the configuration in a single location. The complete information is copied verbatim into the wheel, to facilitate the ability of constructing *-variants.json for index using prebuilt wheels alone.

The *-variants.json files are generated separately for every package version. This makes it possible to upload them along with every new version without having to update the previous file. It also makes it possible for the index to generate the file after all files for a version have been uploaded, similarly to the .metadata files.

Provider information

All providers are keyed on their namespaces, to permit matching them easily to variant properties. The two most important data are the requires key that is necessary to automatically install the provider plugin and therefore enable automatic selection of variants, and the plugin-api key that provides flexibility in layouting the plugin to the author's wishes.

The requires key permits uses standard Python dependency specifier syntax, and permits multiple values similarly to the dependency specifiers used elsewhere in package management context. For user convenience, plugin-api is optional and defaults to the value inferred from the first package in requires — this aims to reduce the need of having to explicitly look up the correct plugin-api value when using a provider plugin. Ideally, plugin-api would only be explicitly declared in special cases. When constructing the default value, - are replaced by _ since the former is not valid in import statements and can be relatively common in distribution names; other characters are not normalized since packages follow different conventions on matching distribution names to import names.

The enable-if key was added to enable cleanly restricting the systems on which the provider is used, and therefore avoiding installing unnecessary provider plugins on systems where they always report no compatible variant properties. For example, providers handling compatibility with specific CPU features need only to be installed on systems with specific CPU architectures.

The optional key was added to add an ability to make some of the variant providers optional. The requested use case is the ability to avoid installing plugins for rarely used variants by default.

Default priorities

Provider plugins define the features and their values in a specific order. However, the ordering between different plugins is undefined. Therefore, it is necessary for every package to specify the requested ordering for all namespaces, including optional namespaces.

The format also permits packages to override the preference order initially specified by the plugins, for features within every namespace, and for property value for every feature. The overrides are scoped to allow specifying features or property values that have higher significance without needing to explicitly cover all the features or properties used by the package.

Variants

The built variant properties are not fixed and therefore are not part of pyproject.toml. However, they are added to the same structure in variant.json to avoid introducing additional variant information files. The same format is reused both in *.dist-info/variant.json and *-variants.json files, with the difference that in the former file it specifies only the single variant, while in the latter all wheel variants available. This makes it possible to easily construct the latter file by merging the JSON from individual wheels.

Specification

Wheel Variants

Wheel Variants provide the ability to parametrize built wheels beyond the scope currently permitted by wheel tags. Every variant is described by zero or more properties that are defined and controlled by provider plugins. The plugins provide a standardized Python API to determine which variants are supported by the system, and to order them according to preference in installing.

Wheel filename

This specification extends the wheel filename to include an optional variant label. The complete filename follows the following pattern:

{distribution}-{version}(-{build tag})?-{python tag}-{abi tag}-{platform tag}(-{variant label})?.whl

Files not featuring the variant label part are regular wheels. Variant wheels use it to uniquely identify each variant. It can either be a 8-character variant hash, or a custom string of 1 to 8 ASCII characters from the range [a-z0-9._].

For example, the following are valid wheel variant names:

mypackage-0.0.1-py3-none-any-fa7c1393.whl
mypackage-0.0.1-cp310-abi3-manylinux_2_28_x86_64-fast.whl
mypackage-0.0.1-3-py3-none-any-fa7c1393.whl

Variant properties

Each variant is described using zero or more properties. A property is a string of the following form:

namespace :: feature :: value

The namespace is defined by the provider plugin, and all properties defined by the provider use the same namespace. The feature specifies the property name, and value the corresponding property value. Both namespace and feature are ASCII strings of characters in the range [a-z0-9_], while value of characters in the range [a-z0-9_.,!>~<=].

A single variant can include multiple features from a namespace, and multiple values for the feature. For a feature to be considered compatible with the sytem, the provider must indicate that at least one of its values is compatible. For a wheel to be considered compatible, all of its features must be compatible.

For example, the following set of features:

myprovider :: version :: 1.1
myprovider :: version :: 1.2
myprovider :: accelerated :: yes

indicates that myprovider :: version :: 1.1 or 1.2 must be supported, and that myprovider :: accelerated :: yes must be supported.

Variant hash

Variant hash is computed using the following algorithm, where properties are given as a list of property tuples:

import collections.abc
import hashlib


def variant_hash(properties: collections.abc.Collection[tuple[str, str, str]]) -> str:
    if len(properties) == 0:
        return "00000000"
    hash_obj = hashlib.new("sha256")
    for namespace, feature, value in sorted(properties):
        hash_obj.update(f"{namespace} :: {feature} :: {value}\n".encode())
    return hash_obj.hexdigest()[:8]

Null variant

A null variant is a special case of a wheel variant. It has no properties, and therefore it is always considered supported, but less preferable than any other variant. Its variant label is always 00000000. However, it is distinct from non-variants, as it still requires the package manager to explicitly support variants, and therefore it can be used to provide distinct wheels to use when no other variant is supported but variant support is available, and when the package manager does not support variants at all or the support is explicitly disabled.

Provider Plugins

Provider plugins define the valid variant properties and provide the logic for detecting which properties are compatible with the user's system. They are Python packages providing an API for installers to call into. Each plugin defines a namespace for all its properties.

API endpoint

The API can be either implemented as top-level variables and functions in a Python module, or as a class. The API endpoint is specified using the same syntax as object references in the entry points specification, that is:

{import path}(:{object path})?

where import path specifies the module to import, as for the Python import statement, and object path specifies the class to use. If object path is omitted, the whole module is used as the endpoint.

If the API endpoint specifies a callable, it is called to instantiate the provider object. Otherwise, it is used as-is.

An API endpoint specification is equivalent to the following Python pseudocode:

import {import path}

if {object path}:
    obj = {import path}.{object path}
else:
    obj = {import path}

if callable(obj):
    obj = obj()

Additionally, a plugin provider can install an entry point in the variant_plugins group that can be used by development tools to discover available providers, for example providing methods to query the plugin status or easily add wheel variant support to pyproject.toml. However, wheels must be installable without the presence of entry points.

An example entry point could be installed using the following PEP 621 syntax:

[project.entry-points.variant_plugins]
x86_64 = "provider_variant_x86_64.plugin:X8664Plugin"

Plugin API

The plugin API needs to conform to the PluginType protocol as exemplified in the following snippet:

class VariantFeatureConfigType:
    name: str
    values: list[str]


class VariantPropertyType:
    namespace: str
    feature: str
    value: str


class PluginType:
    namespace: str
    dynamic: bool

    def get_supported_configs(
        self, known_properties: frozenset[VariantPropertyType] | None
    ) -> list[VariantFeatureConfigType]:
       ...

    def validate_property(self, variant_property: VariantPropertyType) -> bool:
       ...

The plugin API can be implemented either at class or module level. When implemented as a class, the listed attributes can also be implemented as properties, and the listed methods can also be class or static methods. When implemented at module level, the attributes are implemented as global variables, the methods are implemented as global functions, and the self parameter must be omitted.

The plugin must implement the following attributes:

  • namespace stating the namespace used by the provider

  • dynamic indicating whether the plugin is dynamic

It must also implement two methods:

  • get_supported_configs() that returns a list of feature names and values that are compatible with the current environment, in their order of preference (i.e. a wheel with such a property can be installed)

  • validate_property() that checks whether the specified property name and value is valid (i.e. a wheel can be built with a such a property)

get_supported_configs()

The get_supported_configs() method is used to obtain the list of configurations that are supported by the current environment. Its exact semantics depends on whether the provider plugin is declared as dynamic or not.

If the provider is static (dynamic = False), the list of supported configurations is expected to be fixed. The known_properties parameter is always None, and the method must return all configurations supported by the system. The package manager may cache that list and reuse it for other packages using the same plugin.

If the provider is dynamic (dynamic = True), known_properties is an unordered container of all properties found in installable wheel variants for the package or packages in question. The provider must verify whether each of the listed properties is supported, and return configurations that include these of them that are. Since the return value may depend on known_properties, package managers cannot cache it across different packages, and instead must call the method separately for every value of known_properties.

The known_properties option will be passed a type meeting the VariantPropertyType prototype, that is having three attributes or properties: namespace with the property namespace, feature with its feature name, and value with its value. Only properties using the provider's namespace must be passed.

The return value is an ordered list of "feature configuration types". These types must implement two attributes or properties: name stating the feature name, and value being an ordered list of supported values. The configuration objects and their corresponding values should be ordered from the most preferred to the least preferred. When selecting variants to install, variants with features and properties of higher precedence will be preferred.

validate_property()

The validate_property() method is used to determine whether the specified property is valid. It is passed a type matching the VariantPropertyType prototype, and must return True if it is valid or False if it is not. When a wheel variant is being built with multiple properties from a given namespace, the function will be called separately for each of them. It will only be called with properties whose namespace matches the plugin's namespace.

Variant information

Variant information is stored in three locations:

  1. As a top-level table called [variant] in pyproject.toml
  2. As a JSON file called {distribution}-{version}.dist-info/variant.json in each variant wheel
  3. As a JSON file called {distribution}-{version}-variants.json on the wheel index

[variant] in pyproject.toml defines the two keys providers and default-priorities. providers declares the variant providers and when they are used, while default-priorities specifies the default priorities for ordering wheels by preference.

Upon building the wheel, these keys and their values are copied to the *.dist-info/variant.json file. This file additionally contains a variants key, containing a dictionary with a single key that is the wheel's variant label. The value defines the properties required by this wheel. It is a dictionary where the keys are namespaces and the values are dictionaries with features as keys and a list of properties as values.

*-variants.json merges the variant files of all wheels of a release in an index. It follows the same structure as *.dist-info/variant.json and contains the same providers and default-priorities entries. The variants however contain one key for each wheel variant label, where the value is the entry from the corresponding wheel.

{distribution} and {version} are the project name and version normalized in the same way as in wheels, as specified in the binary distribution format, that is the normalized package name with - replaced by _ and the normalized version.

Example pyproject.toml:

[project]
name = "foo-bar"
version = "1.2.3"

[variant.default-priorities]
# prefer aarch64 over x86_64
namespace = ["aarch64", "x86_64"]
# prefer aarch64 version and x86_64 level features over other features
# (specific CPU extensions like "sse4.1")
feature.aarch64 = ["version"]
feature.x86_64 = ["level"]
# prefer x86-64-v3 and then older (even if CPU is newer)
property.x86_64.level = ["v3", "v2", "v1"]

[variant.providers.aarch64]
# Using different package based on the Python version
requires = [
  "provider-variant-aarch64 >=0.0.1,<1; python_version >= '3.9'",
  "legacy-provider-variant-aarch64 >=0.0.1,<1; python_version < '3.9'",
]
# use only on aarch64/arm machines
enable-if = "platform_machine == 'aarch64' or 'arm' in platform_machine"
plugin-api = "provider_variant_aarch64.plugin:AArch64Plugin"

[variant.providers.x86_64]
requires = ["provider-variant-x86-64 >=0.0.1,<1"]
# use only on x86_64 machines
enable-if = "platform_machine == 'x86_64' or platform_machine == 'AMD64'"
plugin-api = "provider_variant_x86_64.plugin:X8664Plugin"

Example foo_bar-1.2.3.dist-info/variant.json in foo_var-1.2.3-cp313-cp313-win_amd64-fa7c1393.whl:

{
  "default-priorities": {
    "feature": {
      "aarch64": ["version"],
      "x86_64": ["level"]
    },
    "namespace": ["aarch64", "x86_64"],
    "property": {
      "x86_64": {
        "level": ["v3", "v2", "v1"]
      }
    }
  },
  "providers": {
    "aarch64": {
      "enable-if": "platform_machine == 'aarch64' or 'arm' in platform_machine",
      "plugin-api": "provider_variant_aarch64.plugin:AArch64Plugin",
      "requires": [
        "provider-variant-aarch64 >=0.0.1,<1; python_version >= '3.9'",
        "legacy-provider-variant-aarch64 >=0.0.1,<1; python_version < '3.9'"
      ]
    },
    "x86_64": {
      "enable-if": "platform_machine == 'x86_64' or platform_machine == 'AMD64'",
      "plugin-api": "provider_variant_x86_64.plugin:X8664Plugin",
      "requires": ["provider-variant-x86-64 >=0.0.1,<1"]
    }
  },
  "variants": {
    "fa7c1393": {
      "x86_64": {
        "level": ["v3"]
      }
    }
  }
}

Example foo_bar-1.2.3-variants.json:

{
  "default-priorities": {
    "feature": {
      "aarch64": ["version"],
      "x86_64": ["level"]
    },
    "namespace": ["aarch64", "x86_64"],
    "property": {
      "x86_64": {
        "level": ["v3", "v2", "v1"]
      }
    }
  },
  "providers": {
    "aarch64": {
      "enable-if": "platform_machine == 'aarch64' or 'arm' in platform_machine",
      "plugin-api": "provider_variant_aarch64.plugin:AArch64Plugin",
      "requires": [
        "provider-variant-aarch64 >=0.0.1,<1; python_version >= '3.9'",
        "legacy-provider-variant-aarch64 >=0.0.1,<1; python_version < '3.9'"
      ]
    },
    "x86_64": {
      "enable-if": "platform_machine == 'x86_64' or platform_machine == 'AMD64'",
      "plugin-api": "provider_variant_x86_64.plugin:X8664Plugin",
      "requires": ["provider-variant-x86-64 >=0.0.1,<1"]
    }
  },
  "variants": {
    "fa7c1393": {
      "x86_64": {
        "level": ["v3"]
      }
    },
    "fp16": {
      "aarch64": {
        "fp16": ["on"]
      }
    },
    "i8mmbf16": {
      "aarch64": {
        "bf16": ["on"],
        "fp16": ["on"],
        "i8mm": ["on"]
      }
    }
  }
}

Provider information

The provider information dictionary provides information on how to install and use variant providers. It must be specified in pyproject.toml for every variant namespace that is supported. It must be copied to variant.json as-is, including data for providers that are not used in the particular wheel. The dictionary keys are namespaces, while the values are dictionaries. They must include the following key:

  • requires: list[str] specifying a list of one or more package dependency specifiers. When installing the provider, all the dependencies are installed (provided their environment markers match).

Additionally, they may include the following keys:

  • enable-if: str specifying an environment marker defining when the plugin should be used. If the environment marker does not match the running environment, the provider will be disabled and the variants using its properties are deemed incompatible.

  • optional: bool specifying whether the provider is optional, as a boolean value. If it is true, the provider is considered optional and it should not be used unless the user opts in to it, effectively rendering the variants using its properties incompatible. If it is false or missing, the provider is considered required.

  • plugin-api: str specifying the API endpoint for the plugin. If it is specified, it must be an object reference as explained in the "API endpoint" section. If it is missing, the package name from the first dependency specifier in requires is used, after replacing all - characters with _ in the normalized package name.

Default priorities

The default priorities dictionary controls the preference ordering of variants. It has a single required key:

  • namespace: list[str] listing all the namespaces used by the wheel variants, from the most important to the least important. This list must have the same members as keys of the providers dictionary.

It may have the following optional keys:

  • feature: dict[str, list[str]] with namespaces as keys, and ordered list of corresponding feature names as values. The values present on the list override the default ordering specified by the provider itself, and are listed from the most important to the least important. Features not present on the list are considered of lower importance than these present, and their relative importance is defined by the plugin.

  • property: dict[str, dict[str, list[str]]] with namespaces as first-level keys, feature names as second-level keys and ordered lists of corresponding property values as second-level values. The values present on the list override the default ordering specified by the provider itself, and are listed from the most important to the least important. Properties not present on the list are considered of lower importance than these present, and their relative importance is defined by the plugin.

Variants

The variants dictionary is present in variant.json file to indicate the variant that the wheel was built for, and in *-variants.json file to indicate all the wheel variants available. Its keys are variant labels, while values list used variant properties.

The values themselves are nested dictionaries, with first-level keys specifying namespace names, and second-level keys specifying feature names within given namespace. The second-level value is a list of property values that the wheel was built for.

Variant environment markers

The specification adds additional environment markers to enable specifying dependencies conditional to enabled variant properties. The following new markers are added:

  • variant_namespaces corresponding to the set of namespaces of all the variant properties that the wheel variant was built for

  • variant_features corresponding to the set of namespace :: feature pairs of all the variant properties that the wheel variant was built for

  • variant_properties corresponding to the set of namespace :: feature :: value tuples of all the variant properties that the wheel variant was built for

The markers are defined as set of strings, and therefore must be matched via the in or not in operator, e.g.:

frobnicate; "foo :: bar :: baz" in variant_properties

Implementations should support matching the values while ignoring whitespace.

Variant marker expressions are evaluated against a wheel, not against the output of the provider plugins. An implementation selects the best variant for the current platform using the properties from the provider plugins, or it builds a wheel from a source distribution. It then evaluates the marker expression using the properties of that wheel. If a non-variant wheel was selected or built, all variant markers evaluate to False.

Integration with installers

Install procedure

When requested to install a package, a package manager supporting wheel variants should:

  1. If fetching from a remote index, fetch the corresponding *-variants.json file. If the file cannot be downloaded or is invalid, wheel variants should be ignored. Any variants not listed in the file should be ignored as well.

  2. Determine which provider plugins to use. Plugins that do not match enable-if rules, or are optional and were not explicitly enabled should be discarded.

  3. Create an isolated environment and install the plugin provider packages there. While installing provider plugins, variant support must be disabled.

  4. If dynamic plugins are used, construct a complete set of all properties used in considered variants.

  5. Invoke the get_supported_configs() plugin API function.

  6. Filter out variants that are not compatible according to the returned value. The null variant is always compatible.

  7. Install the best variant according to the ordering rules. If no variants are compatible, fall back to the regular wheel, if available.

Additionally, package managers should support the following features:

  • disabling variant support entirely

  • limiting variant support to specific plugins (e.g. plugins provided by the package manager, plugins vetted by user)

  • specifying an explicit variant to install

  • specifying optional providers to enable

  • controlling the use of isolated environment

Variant ordering

In order to determine the best variant to install, the package manager should order wheel variants using the following algorithm:

  1. All namespaces are ordered according to the priorities specified in default-priorities.namespace key.

  2. For features within namespaces, the order returned by get_supported_configs() is updated so that all features that are in default-priorities.feature are in that order and ahead of the features that aren't in default-priorities.feature.

  3. For property values, the order returned by get_supported_configs() is updated os that all values that are in default-priorities.property are in that order and ahead of the values that aren't in default-priorities.property.

  4. Properties are sorted top-down according to namespace-feature-value ordering. Properties from a higher priority namespace sort above these from a lower priority namespace. Within a single namespace, properties from a higher priority feature sort above these from a lower priority feature. Within a single feature, properties from a higher priority value sort above these from a lower priority value.

  5. Wheel variants are sorted according to their property priorities. A variant with a higher priority property sorts above a variant without that property. Therefore, a variant with all possible properties would sort first, a variant with all properties but the lowest priority one second, and so on. The null variant always sorts last, but it takes precedence over a non-variant wheel.

Integration with build backends

Build backends wishing to support wheel variants should provide the following options:

  • an option to specify the list of variant properties to build for

  • an option to request building the null variant (exclusive with specifying variant properties)

  • an option to override the variant label (exclusive with building a null variant)

It is recommended that these options are exposed via PEP 517 config_settings dictionary.

When building a wheel variant, the build backend should:

  1. Obtain the set of all namespaces from the requested properties, and verify that they are present in the variant.providers table in pyproject.toml (and in variant.default-properties.namespace).

  2. Install the respective provider plugins in the isolated build environment (when building via a PEP 517 backend, this is done by including them in the return value of get_requires_for_build_wheel() hook).

  3. Invoke the plugins' validate_property() functions for every property requested, to verify their correctness.

  4. Construct the *.dist-info/variant.json by combining the variant information from pyproject.toml with requested variant properties.

  5. Build the wheel, including the variant label in the filename.

The build backend may support customizing the build process based on selected variant properties, in particular exposing the variant information to the scripts run at build time.

Backward Compatibility

The proposal should not be causing backwards compatibility issues by aiming for pre-variant installer implementations to reject variant wheels as incompatible. This is achieved by adding an additional filename component, causing the validation or parsing logic to fail. These installers should therefore ignore wheel variants, and fall back to a regular wheel, should one be provided.

Aside from this explicit incompatibility, the specification makes minimal and nonintrusive changes to the wheel format. This aims to ease implementing it, and particularly providing support in third party tools that are neither installers nor build backends, and therefore do not need specific variant awareness. Variant information is stored in a separate file, therefore it does not require Core Metadata version change, and it is unlikely to cause problems for tools reading METADATA or WHEEL files.

The use of explicit *-variants.json files make it possible to publish variant wheels via indexes without explicit wheel variant support. The only requirement is that the index permits publishing wheels with variant-specific filenames, and that it permits publishing JSON files. In particular, they do not have to parse variant information in any way.

Security Implications

The provider plugin mechanism introduces potential security risks. Its flexibility implies that any requested package may introduce variant wheels, therefore causing the package manager to install variant plugin packages, and execute code from them. This effectively goes against the rationale for the wheel format, that aimed to avoid running arbitrary code at install time. Furthermore, it has been pointed out that packages that will be used as a regular user are installed with elevated privileges, effectively making arbitrary code execution even more serious of a threat.

The proposal opens at least two new points in the installation supply chain for malicious actors to inject arbitrary code payload:

  1. A new version of an existing provider plugin is published with malicious code.

  2. A new variant provider is added to an existing package, and that provider is malicious.

Unfortunately, it is impossible to fully address these concerns without sacrificing the flexibility and user convenience. Nevertheless, it should be possible to reduce the risks. In particular, the following options have been suggested:

  • Providing users with more explicit control over variant usage. The package manager should provide options to disable variant use entirely, allow users to specify allow-lists and block-lists for variant providers, and pin them.

  • Providing the ability to use a static file in place of variant provider calls. Such a file could be generated by invoking the plugin in a secured environment or written manually. The installer would consult the file to get the list of supported configurations rather than installing and running the plugins. Unfortunately, this will be hard to maintain for dynamic plugins, since their output may differ per available variants.

  • Maintaining a central registry of vetted variant providers. A central authority would be responsible for scanning new plugin releases for malicious code, and maintaining a list of versions and hashes of plugins confirmed to be secure.

  • Requiring that provider plugins vendor all their dependencies, and disabling dependency installation while installing them, therefore reducing the attack surface and making auditing easier.

  • Vendoring or reimplementing popular plugins, such as these related to GPU or CPU feature detection, in package managers. This allows installations with variant support without running third-party code. Such functionality is similar to the platform probing installers already have to perform to determine operating system version and libc.

How to Teach This

Installer documentation

The documentation intended for installer users will need to cover:

  • The concept of wheel variants and their effect on wheel selection
  • The security implications of variant provider use and ways to mitigate them
  • Options and configuration specific to variant selection
  • Instructions for debugging unexpected behavior, notably incorrect variant selection

Build backend documentation

The documentation intended for package builders will need to cover:

  • Instructions on finding variant providers and inspecting their properties
  • Options related to specifying variant properties and label
  • Tutorials on building variant wheels

The documentation related to variant providers will need to cover:

  • Technical details and good practices for developing and maintaining provider plugins
  • Tutorials on creating new provider plugins
  • Governance practices for provider plugins

Technical documentation

After the PEP is accepted, the Binary distribution format specification will need to be updated for wheel variants.

Reference Implementation

A prototype implementation has been developed, demonstrating:

Rejected Ideas

Alternative approaches

Several alternative approaches were considered and ultimately rejected:

  1. Explicit Package Naming (mypackage-gpu, mypackage-cpu)

    • Leads to dependency resolution issues and combinatorial explosion of package variants.

  2. Bundling All Dependencies into a Single Wheel

    • Results in unnecessarily large downloads and inefficiencies.

  3. Modifying pip Internals Directly

    • Would impose significant maintenance burden on pip maintainers and slow adaptation to new hardware platforms.

  4. One index per configuration

    • Significant user complexity. Force the user to carefully read the documentation.
    • Totally breaks the dependency tree: transformers => pytorch

  5. Extending platform tags for GPU awareness

    • Less flexible than the proposed solution. Requires package managers to keep being updated for changing GPUs.

pytorch selector

Wheel Variants

Wheel filename

  • Adding the variant label as a third component (before the build tag) with additional ~ characters. This approach was ultimately rejected, as adding it as a last component made it easier to distinguish different variants, and achieved the same goals.

  • Using both hash and label in the filename. This approach was rejected because it caused an unnecessary increase of filename length. As the specification evolved and made it unnecessary to include the hash in the filename, it was suggested to replace it with a human-readable label instead.

  • Automatically generating human-readable labels by providers. This idea did not fit well with very limited variant label length.

  • Using a distinct character (such as +) as a variant label separator. This would make wheel variants even more distinct from regular wheels, and make it easier to adjust the current filename processing algorithms, by avoiding the ambiguity of a 6-component filename (that could either mean build tag or variant label being present). The proposal relies on the variant label being interpreted as part of the platform tag by pre-variant implementations, and therefore rejected based on unsupported platform. However, this approach does not work correctly if the wheel uses multiple platform tags, e.g. platform1.platform2+label could be selected if platform1 matched.

Variant properties

  • Originally, only a single value was permitted for a property. This assumed that variants designate a specific property of the wheel (e.g. a CPU version it was built for), while the provider plugins indicate which of these properties are supported by the system. However, during discussion the need for an opposite approach was indicated, where the wheel designates its compatibility (e.g. as a multiple compatible runtime versions), and the plugin verifies whether it matches the system.

  • Interpreting the value as a version specifier, and matching the supported values (as versions) against it. It was rejected as not very generic and it was hard to define a single good variant precedence sorting. Instead, support for dynamic plugins was added, that makes it possible for plugins to implement a similar logic if they need one, and implement it in the way best fitted to their particular needs.

Variant hash

  • The initial implementation lacked separation between serialized variant properties. As a result, different combinations of properties could have yielded the same hash value (a :: b :: c + de :: f :: g = a :: b :: cd + e :: f :: g).

Plugin API

  • It was proposed that plugins could be implemented as callable executables (or scripts) instead. This would provide natural process isolation, and make it easier to implement plugins in programming languages other than Python. However, this idea was ultimately rejected in favor of following the approach more consistent with PEP 517.

  • Originally, provider plugins relied entirely on entry points for discovery, assuming that all plugins installed in the environment would be used. However, this was deemed not explicit enough, and the inconsistency with PEP 517 was pointed out.

  • The original static API used a get_all_configs() function that provided all valid property values for the purpose of validation. To facilitate dynamic plugins and to avoid unnecessary divergence in API, it was replaced by a simpler validate_property() function.

  • Use of more basic Python types (such as tuples) for passing variant configurations and properties was considered. However, dataclass-like protocols provided much better readability at a minimal cost.

Variant information

  • Originally, variant information was added to the Core Metadata. However, it was pointed out that it might not be the most correct location for information regarding wheel metadata — in particular, that the wheel tags are stored in the WHEEL file instead. Additionally, the RFC 822 format was very cumbersome to use, and did not permit 1:1 structure match between all the formats used. After surveying different build backend implementations, the idea was replaced by using a new JSON file.

  • The original design did not use *-variants.json files, but instead relied entirely on evaluating hashes for all possible variant property combinations and matching them against wheel variant filenames. This approach was proven to easily result in exponential growth of computational complexity, and therefore untenable without enforcing arbitrarily low limits on the variants. Rejecting it enabled further extensions, such as dynamic plugins and arbitrary labels.

  • Using Range requests to fetch variant information straight out of wheels. Wheels use the Zip format that supports efficient random access, so it would be possible to avoid a large fetching overhead. Nevertheless, the resulting logic would be much more complex and still less efficient than using *-variants.json.

  • Making variants optional by skipping them from default-priorities.namespace list. It was pointed out that this is confusing: why a priority list controls whether something is optional or not? It also required the users to explicitly control namespace ordering for optional providers. Other options included an additional explicit list of optional (or required) namespaces, or splitting optional-providers dictionary out of providers. Eventually, the optional key was chosen as a method involving minimal duplication.

  • Originally, priority overrides were global rather than per-feature / per-property. This allowed a more fine-grained control, in particular specifying that some features or properties of a lower priority plugin would take precedence over all features and properties of higher priority plugins. However, it made the converse very hard — in order to override the ordering inside a lower priority plugin, one would have to explicitly repeat all features or properties from all higher priority plugins. Since local overrides seemed more likely to occur in practice, the override structure was changed to match.

  • Specifying variant provider dependencies in build-system.requires, with the help of variant environment markers. Since the packages are also needed during install time, they were moved to the dedicated variant.providers table. Furthermore, integration in the original form was quite hard, as the build frontend needed to filter the dependencies before calling the installer.

Open Issues

  1. Dependency Management

    • How should dependencies be expressed when a package depends on a variant of another package?

  2. Lockfile Support

    • Should lockfiles store variant hashes or remain variant-agnostic?

  3. Platform Detection Edge Cases

    • How should plugins handle ambiguous or incomplete hardware information?
    • Probably should stay up to the plugin maintainer to decide.

  4. How to maintain a source-of-truth

    • Everybody who build CUDA-accelerated Wheel Variants need to use exactly the metadata that will be provided to installers.
    • Same logic for CPU, every AVX512 specialized packages need to highlight that feature in the exact same way.
    • Shall we have a package like troveclassifiers to act as a "source of truth"?

  5. Other details

    • Should * be permitted in property values? It is part of version specifiers, so we may want to allow it for consistency.
    • Should variant_hash and/or variant_label environment markers be added?

Conclusion

This proposal outlines a scalable and backward-compatible solution for platform-specific Python Wheel distribution. By leveraging Wheel Variants and Provider Plugins, this mechanism simplifies package installation for users while maintaining efficiency for package maintainers and repository hosts.
